Fouress V16 valves

Product Overview

*Higher Sizes/Pressure available on request.

Introduction

Introduction

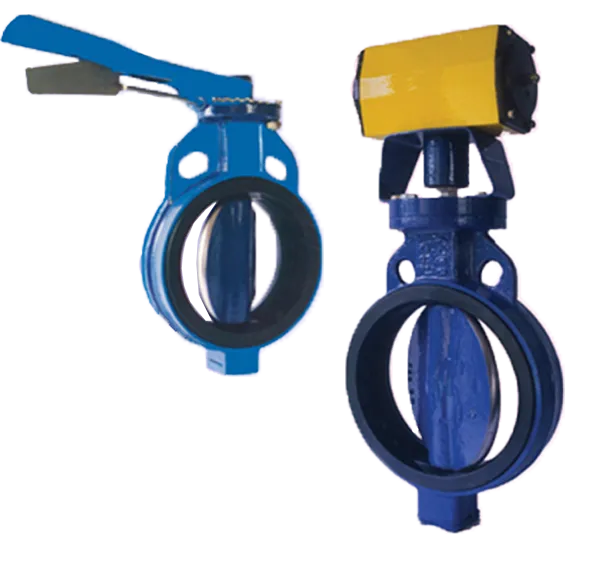

FOURESS COMPACT HIGH PRESSURE BUTTERFLY VALVE (MODEL-4S-V16)

Introducing the Fouress 4S-V16 High Pressure Compact Seal Butterfly valve. Combining versatility with high performance and ease of operation, the 4S-V16 brings in modern design advantages to general purpose valves.

4S-V16 is designed to take higher pressure up to 16 bar. With a soft seated wafer construction and a unique seat sealing design, the 4S-V16 scores over conventional gate and globe valves in every aspect. Its light weight and simplicity of construction ensures economy in operation and maintenance.

The 4S-V16 compact seal construction and flexibility of body, seat and disc materials render it suitable for a wide range of fluids and gases;water,air,town gas, oils(except aromatic hydrocarbons) ,dilute acids and alkalies. The 4S-V16 is ideal for high pressure applications in air conditioning & refrigeration, ship building, fire fighting systems, water supply, sanitation lines, hotels, high rise buildings, water distribution tankers and other general fluid isolation and control applications.

Features

Features

FOURESS COMPACT HIGH PRESSURE BUTTERFLY VALVE (MODEL-4S-V16)

FOURESS High Pressure Butterfly Valves (Model 4S-V16) are with centric disc construction with one-piece body and replaceable seals.
 Ensures bidirectional shut-off.
 High pressure application upto 16 bar.
 Reduced actuating torque as the bush used is of copolymer material. This results in longer life of valves.
 Can be easily fitted on to flanges of ANSI, DIN and BS Standards, without gaskets.
 Endurance tested for guaranteed high performance and durability.

Design Specifications

Design Specifications



Product : Compact Pressure Butterfly valve (MODEL -4S-V16)
Design Specifications :
PARAMETER DETAILS
Size range 50 mm to 600 mm*
Design Pressure 16 Bar*
Temperature range Upto 120 deg C.
Design & Governing Standard BS EN 593
Mode of operation Manual / Pneumatic / Electric
End connection Wafer
Material of Construction (MOC)
Body Cast Iron to IS 210 Grade FG 260
SG IRON to BS 2789 Grade 500/7
SG IRON to IS 1865 Grade 500/7
Disc SG IRON to BS 2789 Grade 500/7
SG IRON to IS 1865 Grade 500/7
Stainless Steel to ASTM A 351 Gr.CF 8/CF 8M
Shaft ASTMA 479 Type 410
Seal NBR/EPDM
Bush Acetal Copolymer
Temperature range Upto 120 deg C.

* Higher Sizes / Pressure available on request
